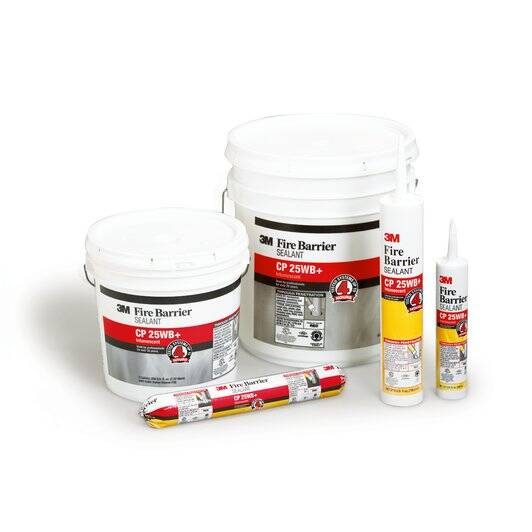

3M™ Fire Barrier Sealant CP 25WB+
Intumescent, water-based sealant for sealing openings around cables, pipes and mixed penetrations. The industry workhorse.
Home / 3M Products
Authorised Distribution
3M Passive Fire Protection Product Range
Genuine 3M firestop products supplied with datasheets, tested system details and full application support. Every product below is available for project supply or supply-and-install packages.
Category 01
Fire Barrier Sealants & Sprays
Intumescent, elastomeric and water-tight sealants for penetrations and construction joints.
3M™ Fire Barrier Silicone Sealant 2000+
Silicone-based sealant for exterior and movement-prone joints; excellent weatherability and flexibility.
3M™ Fire Barrier Water Tight Sealant 3000WT
Watertight firestop sealant for wet areas and floor penetrations exposed to water.
3M™ FireDam™ Spray 200
Sprayable fire-resistive coating for curtain-wall perimeter joints and large linear gaps.
3M™ Fire Barrier Mortar
Cementitious firestop mortar for large floor and wall openings with multiple services.
3M™ Fire Barrier Moldable Putty+ / Putty Pads MPP+
Moldable intumescent putty and pads for cable penetrations and electrical box protection.
3M™ Fire Barrier Sealant IC 15WB+
Economical intumescent, water-based sealant for cables and blank openings — high-volume general firestopping.
3M™ Fire Barrier Rated Foam FIP 1-Step
Fire-rated expanding foam that fills complex and hard-to-reach openings in a single step.
Category 02
Wraps, Collars & Composite Systems
Intumescent devices that crush burning plastic pipes and protect ducts and cable trays.
3M™ Fire Barrier Pipe Collars / RC-1 Restricting Collar
Intumescent collars that seal off burning plastic (PVC/CPVC/HDPE) pipes during a fire.
3M™ Fire Barrier Wrap Strips FS-195+ / Ultra GS
Intumescent wrap strips for plastic pipe and insulated metal pipe penetrations.
3M™ Fire Barrier Duct Wrap 615+
Flexible wrap providing fire-rated enclosure for grease and ventilation ducts.
3M™ Fire Barrier Plenum Wrap 5A+
Wrap system for protection of combustible items and services within plenum spaces.
3M™ Fire Barrier Composite Sheet CS-195+
Rigid composite sheet for large openings with cable trays and multiple services.
3M™ Fire Barrier Pillows
Re-enterable firestop pillows for temporary or frequently modified cable openings.
Category 03
Pass-Through & Cast-In Devices
Engineered devices for fast, re-enterable and future-ready penetration management.
3M™ Fire Barrier Pass-Through Devices
Pre-formed devices for cables through rated walls and floors — install once, re-enter any time as cabling changes.
3M™ Fire Barrier Cast-In Devices
Cast into concrete floors before pouring — penetration-ready firestopping for new construction.
Accessories & Backing Materials
Backer rods, mineral wool, tapes and identification labels to complete every tested system.
Quick Reference
Which System for Which Condition?
Indicative guide only — final selection is always based on the tested system detail for your exact condition.
| Site Condition | Typical 3M System |
|---|---|
| Cables / cable trays through walls & floors | CP 25WB+ sealant, Composite Sheet CS-195+, Pillows, Pass-Through Devices |
| Metallic pipes (bare or insulated) | CP 25WB+ / 2000+ sealant with wrap strip where insulated |
| Plastic pipes (PVC, CPVC, HDPE) | Pipe Collars, RC-1, Wrap Strips FS-195+ / Ultra GS |
| Large multi-service openings | Fire Barrier Mortar, Composite Sheet CS-195+ |
| Curtain wall perimeter / construction joints | FireDam Spray 200, Silicone Sealant 2000+ |
| Wet-area floor penetrations | Water Tight Sealant 3000WT |
| Electrical boxes in rated walls | Putty Pads MPP+ |
| Frequently re-cabled openings (data centres, IT) | Fire Barrier Pillows, Pass-Through Devices |
| Ventilation / grease ducts | Duct Wrap 615+, Plenum Wrap 5A+ |
